iNSIGHT™ Suite

Name: iNSIGHT™ Suite
Brand: Scantron
Availability: InStock

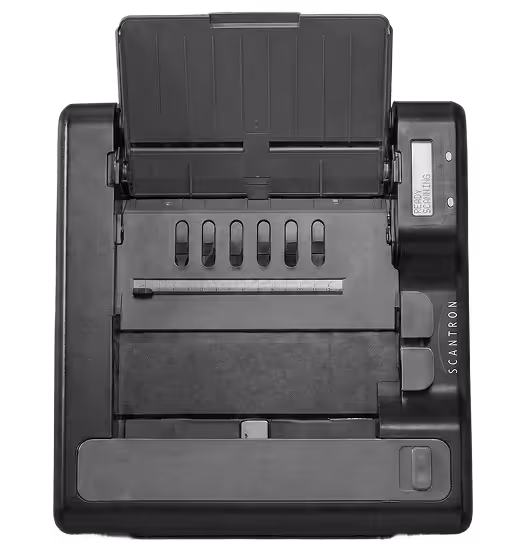

The iNSIGHT™ Suite offers a powerful range of scanners—from the desktop-friendly 4ES to the high-volume production 1500c. Delivering throughputs from 2,800 to 15,000 sheets per hour, these hybrid scanners accurately read traditional OMR marks while seamlessly capturing high-resolution images and text clips.

the challenge

Organizations often struggle to choose between the high-speed accuracy of traditional OMR and the flexible data capture of modern imaging scanners, while also trying to find hardware that perfectly scales to their volume needs.

The Scantron Solution

The iNSIGHT™ Suite bridges this gap. By combining industry-leading OMR "bubble" reading with full-page color imaging and Intelligent Character Recognition (ICR), you can convert handwriting into digital text at any scale—all in one pass.

Design

Designed to read both pen and pencil forms, as well as checkbox responses, X boxes, and barcodes.

Capture

Captures full-page images, specific text clips, and traditional OMR marks simultaneously at speeds up to 2,800 sheets per hour.

Automate

Enjoy continuous self-diagnostics, open feed paths to prevent dust buildup, and sheet thickness detectors that prevent multi-feeds and ensure proper registration while scanning.

Analyze

Transform physical documents into an electronic archive for a reliable "paper trail," allowing you to readily share digitized documents, tests, and surveys online.

Specification

iNSIGHT 4ES: Up to 2,800 sheets/hour | 100-sheet hopper | Grayscale Imaging
iNSIGHT 700c: Up to 6,600 sheets/hour | 500-sheet hopper | Color Imaging
iNSIGHT 1500c: Up to 15,000 sheets/hour | 750-sheet hopper | Color Imaging
Forms Supported: Range from 2.5" x 5" to 9" x 14" (Standard Mark Reflex and Trans-Optic forms).

System Requirements

Operating System: Windows 10 64-bit.
Software Compatibility: Fully compatible with ScanTools® Prisma.
Hardware Connectivity: USB 2.0 or 3.0 (depending on the model).

(Note: The iNSIGHT 1500c includes a Scantron-certified, performance-matched PC controller as an integral component).

Scalable Sorting & Stacking

Keep workflows organized with optional sorting additions like the Select Stacker or the high-capacity Flex Stacker, which automatically separate forms based on predefined edit checks without slowing down the scan rate.

Programmable Interactive Printer

Prints information—such as scores, serial numbers, or error codes—directly onto the sheet being scanned based on the data captured, with no effect on the throughput rate.
